Chapter 2 Operating system organization
- Authors
- Name
- Yunyu
- @realYuka3069
The operating system must:
- time-share the resources of the computer among those processes:
for example: even if there are more processes than there are hardware CPUs, the operating system must ensure that all of the processes get a chance to execute.
- Isolation between process:
for example: That is, if one process has a bug and malfunctions, it shouldn’t affect processes that don’t depend on the buggy process
- interaction: Complete isolation, however,is too strong, since it should be possible for processes to intentionally interact; pipelines are an example.
2.1 Abstracting physical resources
The first question is: when encountering an operating system is why have it at all?
Before anwsering this question, think this: library approach, which is often used in embadded devices.
The downsides:
The downside of this library approach is that, if there is more than one application running, the applications must be well-behaved.
For example, each application must periodically give up the CPU so that other applications can run. Such a cooperative time-sharing scheme may be OK if all applications trust each other and have no bugs.
But it's more typical for applications to not trust each other, and to have bugs
Achieve strong isolation
To achieve strong isolation it’s helpful to forbid applications from directly accessing sensitive hardware resources, and instead to abstract the resources into services(like read, open, write).
For example, Unix applications interact with storage only through the file system’s open, read, write, and close system calls, instead of reading and writing the disk directly
(把底层硬件资源封装成操作系统提供的服务，让程序通过接口使用，而不是直接操作硬件。)
(应用程序通过 system calls 使用 文件系统服务。)
Many forms of interaction among Unix processes occur via file descriptors
2.2 User mode, supervisor mode, and system calls
CPUs provide hardware support for strong isolation
For example, RISC-V has three modes in which the CPU can execute instructions: machine mode, supervisor mode, and user mode.
Machine mode
Instructions executing in machine mode have full privilege; a CPU starts in machine mode.
Machine mode is mostly intended for configuring a computer.
Xv6 executes a few lines in machine mode and then changes to supervisor mode.
Supervisor mode, User Space and Kernel space
the CPU is allowed to execute privileged instructions:
for example, enabling and disabling interrupts, reading and writing the register that holds the address of a page table, etc
(about user space and kernel space)
An application can execute only user-mode instructions (e.g., adding numbers, etc.) and is said to be running in user space,
while the software in supervisor mode can also execute privileged instructions and is said to be running in kernel space
ecall
An application that wants to invoke a kernel function (e.g., the read system call in xv6) must transition to the kernel; an application cannot invoke a kernel function directly.
RISC-V provides the ecall instruction for this purpose. Once, the CPU has switched to supervisor mode
让 CPU 从 user sapce 切换到 kernel sapce，或者说，从user mode 切换到 kernel(supervisor) mode
(in book 2.5)(sret)
When the system call completes, the kernel switches back to the user stack and returns to user space by calling the sret instruction.
which lowers the hardware privilege level and resumes executing user instructions just after the system call instruction
2.3 Kernel organization
A key design question is what part of the operating system should run in supervisor mode.
monolithic kernel
One possibility is that the entire operating system resides in the kernel, so that the implementations of all system calls run in supervisor mode, This organization is called a monolithic kernel.
entire operating system runs with full hardware privilege.Furthermore, it is easier for different parts of the operating system to cooperate
A downside of the monolithic organization is that the interfaces between different parts of the operating system are often complex
microkernel
(aboute server): OS services running as processes are called servers.
the kernel provides an inter-process communication mechanism to send messages from one user-mode process to another
For example, if an application like the shell wants to read or write a file, it sends a message to the file server and waits for a response.
In a microkernel, the kernel interface consists of a few low-level functions for starting applications, sending messages, accessing device hardware.
conceptually xv6 is monolithic.
2.5 Process overview
The mininum unit of isolation in xv6 is a process, as in other Unix operationg system.
The process abstraction prevents one process from wrecking or spying on another process’s memory, CPU, file descriptors, wrecking the kernel itself.
The mechanisms used by the kernel to implement processes include the user/supervisor mode flag, address spaces, and time-slicing of threads.
mechanisms to implement processes.
To help enforce isolation, the process abstraction provides the illusion to a program that it has its own private machine.
A process provides a program with what appears to be a private memory system, or address space, which other processes cannot read or write.
A process also provides the program with what appears to be its own CPU to execute the program’s instructions.
Illusion to own the hole memory for each process
To give each process what appears to own a total private memory, xv6 uses page tables.
The RISC-V page table translates (or “maps”) a virtual address (the address that an RISC-Vinstruction manipulates) to a physical address (an address that the CPU chip sends to main memory).
Page Table and Virtual Address

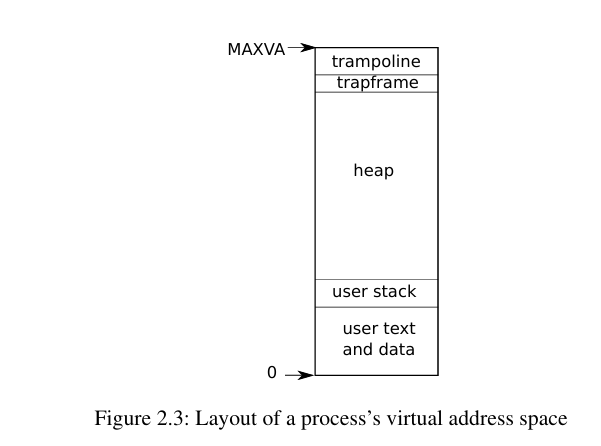

Xv6 maintains a separate page table for each process that defines that process’s address space.
max virtual address
There are a number of factors that limit the maximum size of a process’s address space:
pointers on the RISC-V are 64 bits wide;
the hardware only uses the low 39 bits when looking up virtual addresses in page tables;
and xv6 only uses 38 of those 39 bits. Thus, the maximum address is 238 − 1 = 0x3fffffffff, which is MAXVA defined in kernel/riscv.h:363
Trampoline and trapframe is in Chapter 4
xv6 kernel for states
The xv6 kernel maintains many pieces of state for each process.
Which is gathers into a struct proc.
A process’s most important pieces of kernel state are its page table, its kernel stack, and its run state.
We’ll use the notation p->xxx to refer to elements of the proc structure;
for example, p->pagetable is a pointer to the process’s page table.
p->state indicates whether the process is allocated, ready to run, running, waiting for I/O, or exiting.
Thread.
Thread executes the process's instruction. A thread can be suspended and later resumed.
Much of the state of a thread (local variables, function call return addresses) is stored on the thread’s stacks. (Each process has two stacks: a user stack and a kernel stack (according to 2.5's xv6 kernel for states, it's p->kstack)).
Kernel stack details:
-
When the process is executing user instructions, only its user stack is in use, and its kernel stack is empty.
-
When the process enters the kernel (for a system call or interrupt), the kernel code executes on the process’skernel stack;
-
while a process is in the kernel, its user stack still contains saved data, but isn’t acively used.
2.6 starting xv6, the first process and system call
- When the RISC-V computer powers on, it initializes itself and runs a boot loader which is stored in read-only memory
The bootloader loads the xv6 kernel into memory.
The loader loads the xv6 kernel into memory at physical address 0x80000000
(The reason it places the kernel at 0x80000000rather than0x0 is because the address range 0x0:0x80000000contains I/O devices.)
- In machine mode (as motioned earlier in chapter 2), the CPU executes xv6 starting at
_entry(kernel/entry.s:7).
The RISC-V starts with paging hardware disabled: virtual memory directly mapped to physical memory.
- The instructions at
_entryset up a stakc so that xv6 can run C code.
Xv6 declares space for initial stack, stack0, in the file start.c, The code at __entry loads the stack pointer register(sp) with the address stack0+4096, the top of the stack, because the stack on RISC-V grows down.
(so the max size of stack is 4096)
Now that the kernel has a stack, _entry calls into C code at start
- Start (kernel/start.c), from machine mode to supervisor mode
Start performs some configuration(maybe not discussed here) that is only allowed in machine mode, and then switched to supervisor mode.
To enter supervisor mode, RISC-V provides the instruction
mret .But, this instruction is most often used to return from a previous call from supervisor mode to machine mode. like this:
But, start isn't return from such a call, like this:
So set this things up as if there had been one:
-
it sets the previous privilege mode to supervisor in the register
mstatus -
it sets the return address to main by writing main’s address into the register
mepc -
disables virtual address translation in supervisor mode by writing 0 into the page-table register
satp -
delegates all interrupts and exceptions to supervisor mode
One more task start performs is : it programs the clock chip to generate timer interrupts.
xv6 通过手动设置 mstatus 和 mepc，伪造一个 trap-return 环境，然后用 mret 从 machine mode 跳到 supervisor mode 并开始执行 main()。
Before jumping into supervisor mode, start performs one more task: it programs the clock chip to generate timer interrupts
Finally, after all this done, start "returns" to supervisor mode by calling mret. This causes the program counter to change to main.
- main function
Firstly, main(kernal/main.c) initializes serveral devices and subsystem. It creates the first process by calling userinit(kernel/proc.c:226).
The first process executes a small program written in RISC-V assembly, make makes the first system call in xv6.
initcode.S(user/initcode.s:3)(it's the assembly run in the first process) loads the number for the exec system call into a7 and then calls ecall.
like this:
- Kernal deal with syscall
The kernel uses the number in register a7 in syscall to call the desired system call.
The system call table maps SYS_EXEC to sys_exec(kernal/syscall.c)
Then exec replaces the memory and registers of current process with a new program (in this case /init)
7.Once the kernel has completed exec, it returns to user space in the /init process.
Init (user/init.c:15) creates a new console device file if needed and then opens it as file descriptors 0, 1, and 2.
Then it starts a shell on the console. The system is up.
